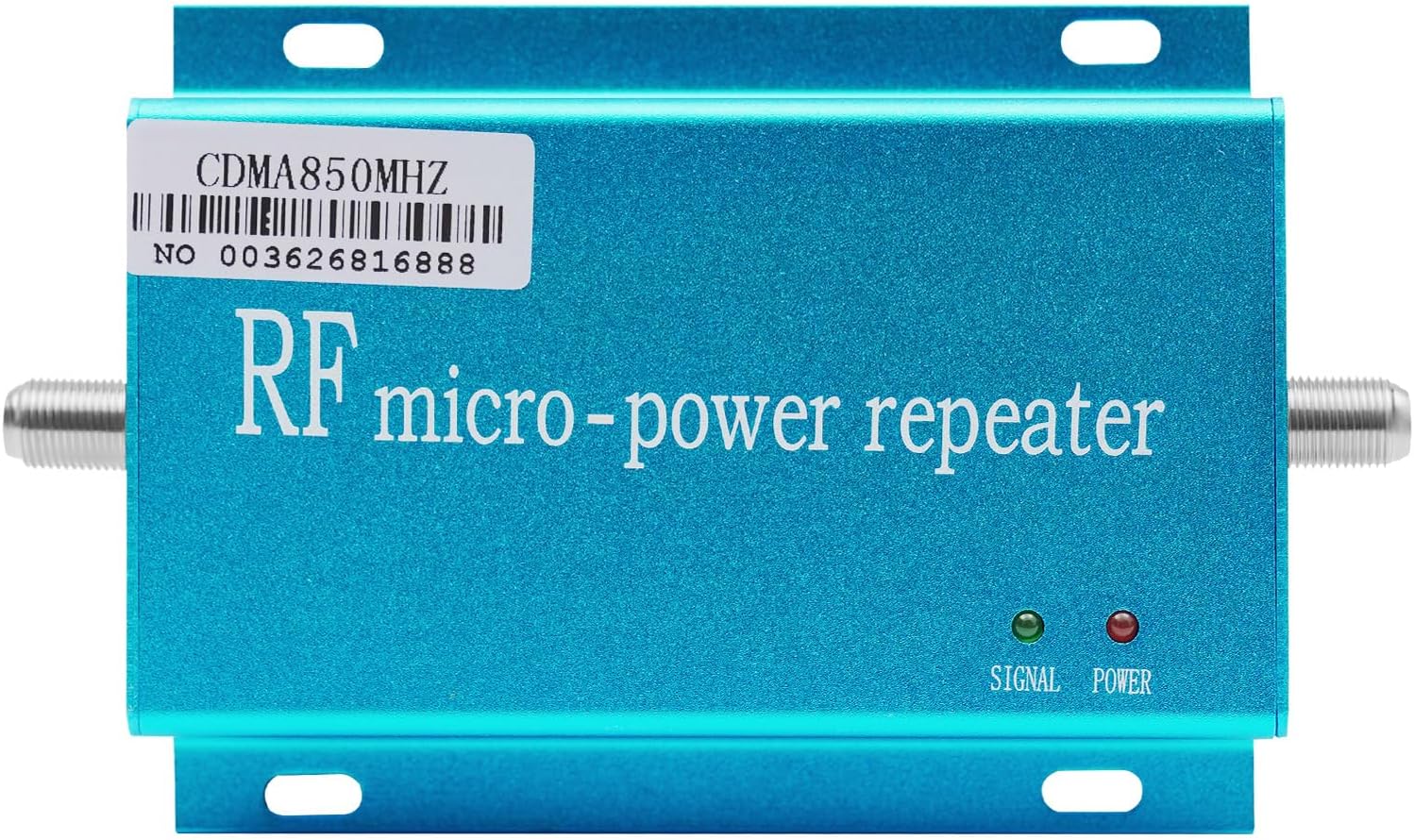

Mobile Signal Repeater Booster Amplifier, Cell Phone Call Signal Repeater with Yagi Antenna Kit, US Plug Power Adapter, for Home, Office & Basement Coverage Up to 2152.8ft²

Specification: Mount Type: Ceiling Mounted, Roof Installation Assembly Required: Yes Style: Modern Color: Blue, White, Black Material: Aluminum Power Source: Corded Electric Plug Type: US Standard Input Voltage: AC 110V - 240V, 50/60Hz Output Voltage: DC 12V 1.0A Frequency Range: 824-849MHz ( Uplink ); 869-894MHz ( Downlink ) Maximum Gain: 60dB ( Uplink ); 65dB ( Downlink ) Power: 20±3dBm Noise Figure: ≤5dB Repeater Coverage: 50-200m²/538.2-2152.8ft² Return Loss: ≤-18dB Spurious Radiation: ≤- 36dBm Impedance: 50Ω Outdoor Yagi Antenna Cable Length: 10m/32.81 ft Ceiling Antenna Cable Length: 3m/ 9.84ft Repeater Size: 140*85*25mm/5.51*3.35*0.98in Ceiling Antenna Size (D*H): 18*18cm/7.09*7.09in Outdoor Yagi Antenna Size: 46*26cm/18.11*10.24in Package Size: 48*20*16cm/18.9*7.87*6.3in Gross Weight: 2.5kg/5.51lbs Net Weight: 2.38kg/5.25lbs Package Included: 1* Repeater 1* Outdoor Yagi Antenna 1* Ceiling Antenna 1* Power Adapter 1* English Manual Other Mounting Accessories Notes: 1.Please check the style and size before purchasing. 2.Please read the instruction manual completely before installation and use, and pay particular attention to the safety instructions included. 3.Please test your cell phone's frequency band before purchase to make sure your cell phone network frequency is compatible with this signal booster. 4.The outdoor antenna should be kept more than 22.97ft away from the repeater. The outdoor antenna should be pointed at the place where the signal is strongest. 5.Please tighten the feeder cable and connector to minimize the attenuation of signal transmission. 6.If there are tall trees within 100 feet around your house, and you can't find a stable signal above 3 bars, the outdoor antenna needs to be erected 60%(at least) to 80%(best) of the tree height. Do not exceed the trees. 7.If you want to use 5G, make sure your area offers 5G service in the available 4G bands before you buy. 8.The coverage area range depends on the outdoor signal level, please make sure there is at least 1 bar signal outside your home.

• 【Enhanced Signal Quality】- It improves your mobile signal, strengthens cellular service, and ensures users can smoothly and clearly receive/make calls, send texts, browse the web, and watch videos.
• 【Wide Adaptability】- It supports carriers such as Verizon, AT&T, T-Mobile, U.S. Cellular, and so on, and is suitable for 12/17, 13, 5, 4/66, 2/25 bands, which can effectively boost the 3G & 4G LTE, 5G signals, so that you can experience ultra-fast and stable internet connection at home.
• 【Wide Coverage】- Signal gain of up to 60dB (uplink) / 65dB (downlink) and signal coverage area of up to 538.2-2152.8 sq. ft. extends the basic signal coverage, allowing everyone to enjoy fewer dropped calls, better voice quality, and faster data speeds within the booster coverage area.
• 【Easy to Use】- When the indoor antenna receives a weak signal from your cell phone or data card, this product amplifies the signal and transmits it through the cable to the outdoor antenna and then to the base station. The better the outdoor signal, the better the coverage of the indoor antenna. You don't need to register the serial number with the operator, just install it and use it!
• 【Easy Installation】- Complete accessories, simple structure, and a detailed English manual help you complete installation with ease.
